Comparison DUT and UT/CSR Orbits for ERS-1


Rms of the radial orbit differences per revolution

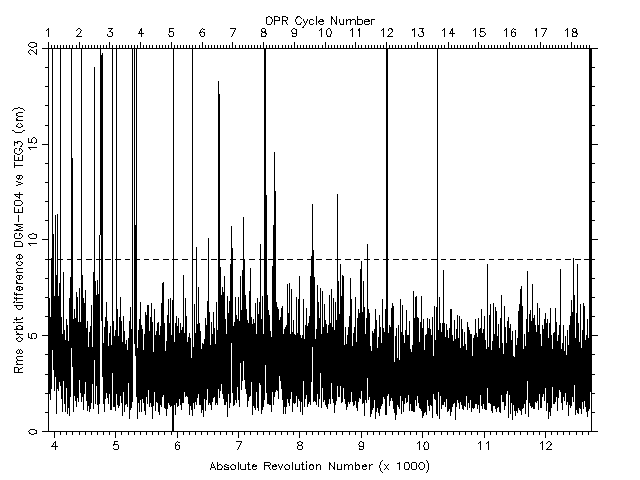

The plot shows per orbital revolution the rms of the radial orbit differences. This plot is also available in PostScript.

All revolutions that exceed 9 cm rms are removed from the analyses. See the table of blackout periods.


Back

More analyses on ERS-1 orbit stability

Questions or comments:
Remko Scharroo, remko.scharroo@lr.tudelft.nl.
8 October 1997.
